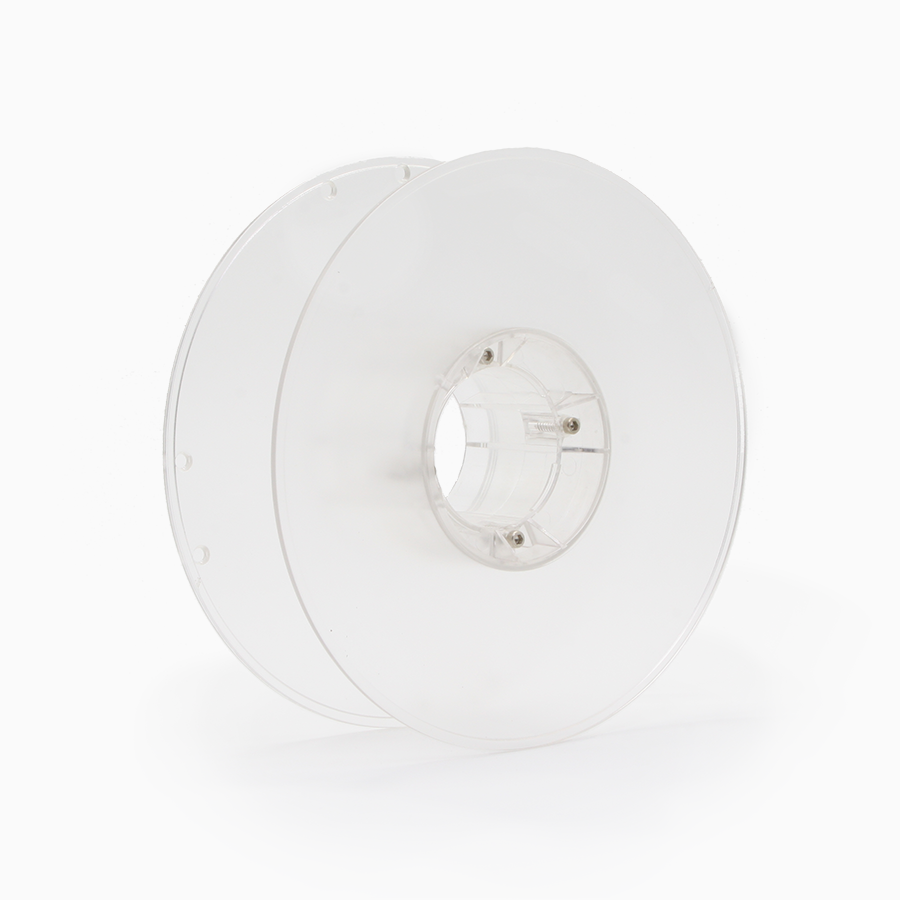

Empty ECO Spool
Empty ECO Spool
Empty 3D Printer Filament Spool
The first reusable spooling system to be sold in Australia. ECO spools are made from high-impact polycarbonate and designed to be reloaded with all filament refills. They're sturdy and durable enough to last a lifetime. The ECO spool accepts all our filament refills across our entire range and cuts down on the amount of single use plastic generated from the 3D printing process.
Held together with 4 x 3mm hex screws, the spool is designed to be taken apart and refilled time and time again.
|
Construction |
Polycarbonate, Steel |
Colour: |
Transparent |
Weight: |
225g ± 2g |
Required Tools: |
3mm Hex Key |
TECH SPECS
+ What is a Standard Print Co. ECO Spool?
The first reusable spooling system to be sold in Australia. ECO spools are made from high-impact polycarbonate and designed to be reloaded with all filament refills. They're sturdy and durable enough to last a lifetime. The ECO spool accepts all our filament refills across our entire range and cuts down on the amount of single use plastic generated from the 3D printing process.
Held together with 4 x 3mm hex screws, the spool is designed to be taken apart and refilled time and time again.
+ How do I refill a Standard Print Co. ECO Spool.
| Step 1: | To re-spool an empty Standard Print Co. ECO spool, first loosen the four securing screws on the reverse face of the spool with a 3mm hex key. |
| Step 2: | After removing the backing plate, slide your naked refill onto the spool |
| Do not cut the filament coil's securing straps at this stage. Doing so will result in the filament uncoiling completely, making it next to impossible to recoil in an orderly manner. | |
| Step 3: | Secure the end of the filament located on the inner diameter of the refill filament coil in the groove located on the inner diameter of the ECO spool before replacing the backing plate of the inner spool. Failure to do this will cause the refill filament coil to spin independently of the ECO spool. |
| Step 4: | Resecure the four screws holding backing plate to the ECO spool. |
| Step 5: | Only after the filament has been secured and backing plate replaced, should a pair of scissors be used to carefully cut and remove the four plastic straps holding the filament coil together being careful not to cut or damage the filament itself. |
+ Do all refill filaments fit on an ECO Spool?
Yes. All refills across our entire material range are designed to fit on our ECO spool.
