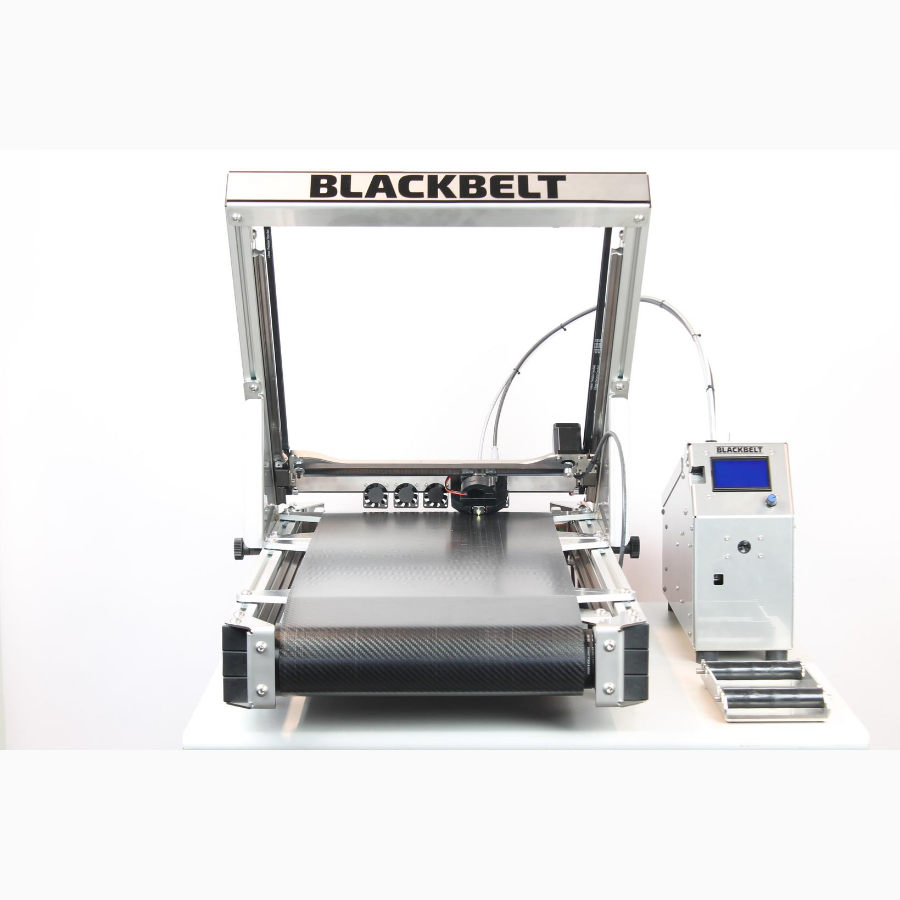

BLACKBELT - Desktop Edition

BLACKBELT - Desktop Edition

$0.00

Printer Type:

  • Fused Filament Fabrication (FFF)

Build Area:

  • 340mm x 340mm x ∞ mm

Add To Cart

Blackbelt Industrial 3D Printer Logo



Features

True industrial production on your desktop.



BLACKBELT+SEEMLES+SERIES+PRODUCTION

Series Production

The BLACKBELT 3D printer truly bridges the gap between rapid prototyping and low-volume manufacturing. The Blackbelt’s ultra-durable carbon fibre composite belt allows the seamless production of thousands of parts.

Blackbelt 3D Printer Open Build Volume

Open Build Volume

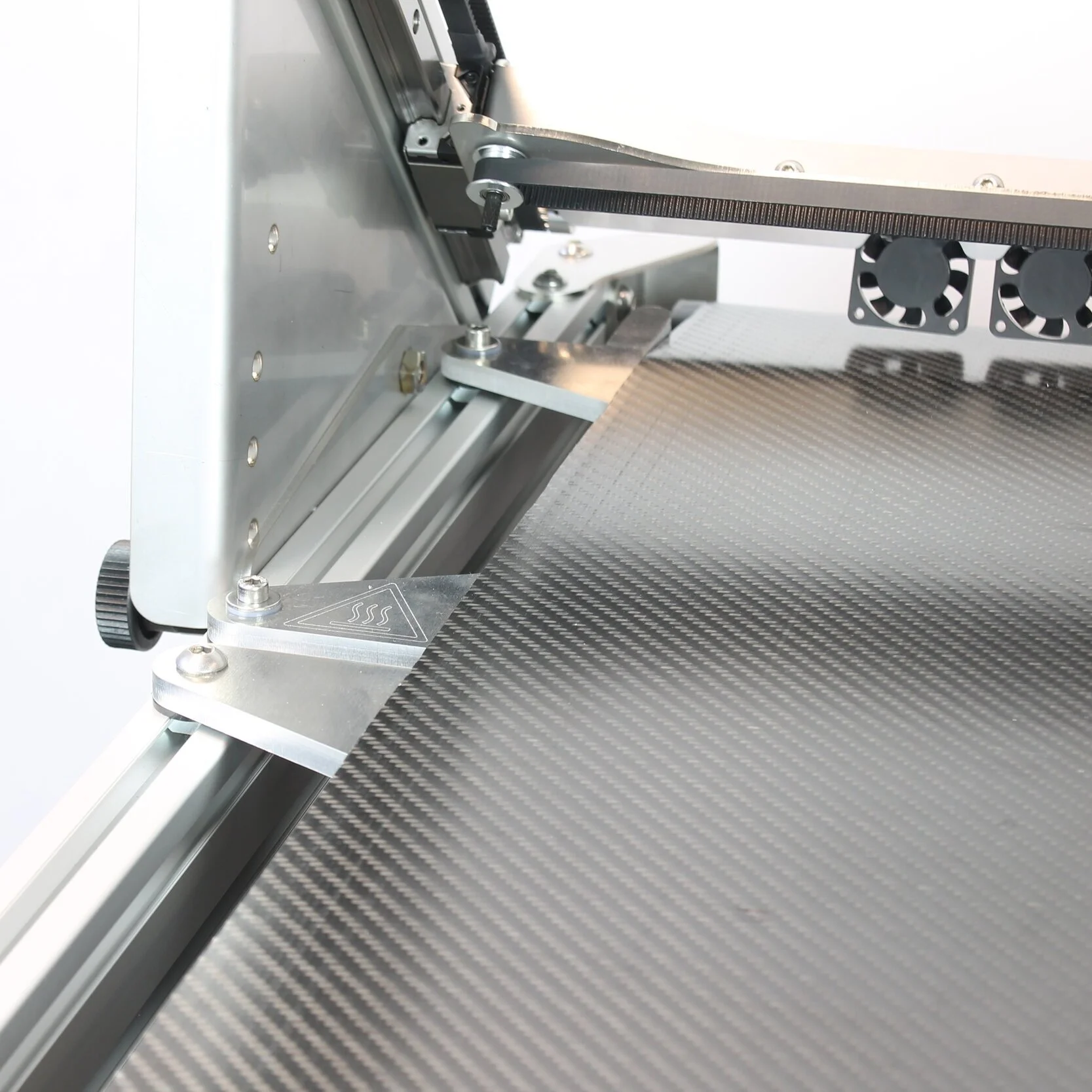

Complex, full size part production is possible with parts able to be printed whole, improving overall structural integrity of printed parts thanks to the BLACKBELT’s unique carbon fibre belt system allowing for a gargantuan 340mm x 340mm x ∞ mm build area.

BLACKBELT HIGH CAPACITY MATERIAL OPTIONS

High-capacity Material Options

High capacity filament spools available through Standard Print Co. paired with the BLACKBELT’s seem-less production capabilities allow you to increase your unattended build time to more than a week of non-stop printing.

BLACKBELT%2B-%2BVARIABLE%2BPRINT%2BANGLE

Variable Print Angles

Optimise print angle for part strength. Printing at 15°/ 25°/ 35°/ 45° angles are as easy as adjusting two knobs on the printer and selecting right angle in BLACKBELT's Cura software. Advanced print slicing algorithms will do the rest, allowing you to be ready to print in seconds.

BLACKBELT%2BULTRA%2BDURABLE%2BCONSTUCTION

Ultra Durable Construction

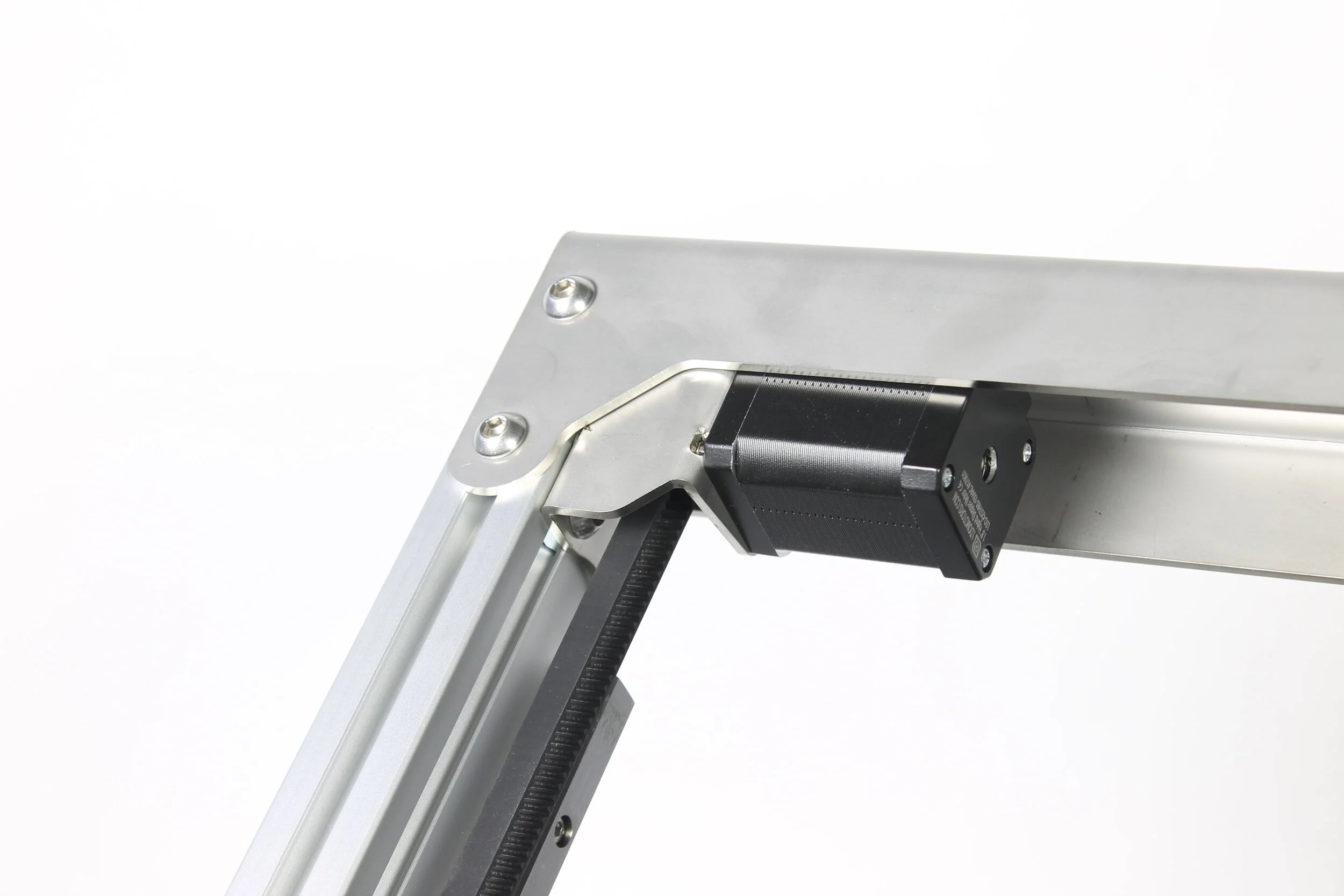

Less printer downtime due to high-performance aluminium construction. BLACKBELT’s reinforced frame design also eliminates the need for re-leveling between prints, ensuring complete part consistency thorough your whole production run.


Dedicated Software

BLACKBELT Cura makes printing simple, coming pre-optimised for the BLACKBELT 3D Printer. Designed especially for the Blackbelt 3D Printer, BLACKBELT Cura allows seamless integration between your 3D printer, software and materials to achieve the perfect print.






Customisation

A modular industrial printing system tailored to your business’s needs.

1. Select your extruder style

VarioDrive

Flexible Materials and Advanced Composites

Bowden

High Performance Printing Of Traditional Materials

BLACKBELT+VARIODRIVE

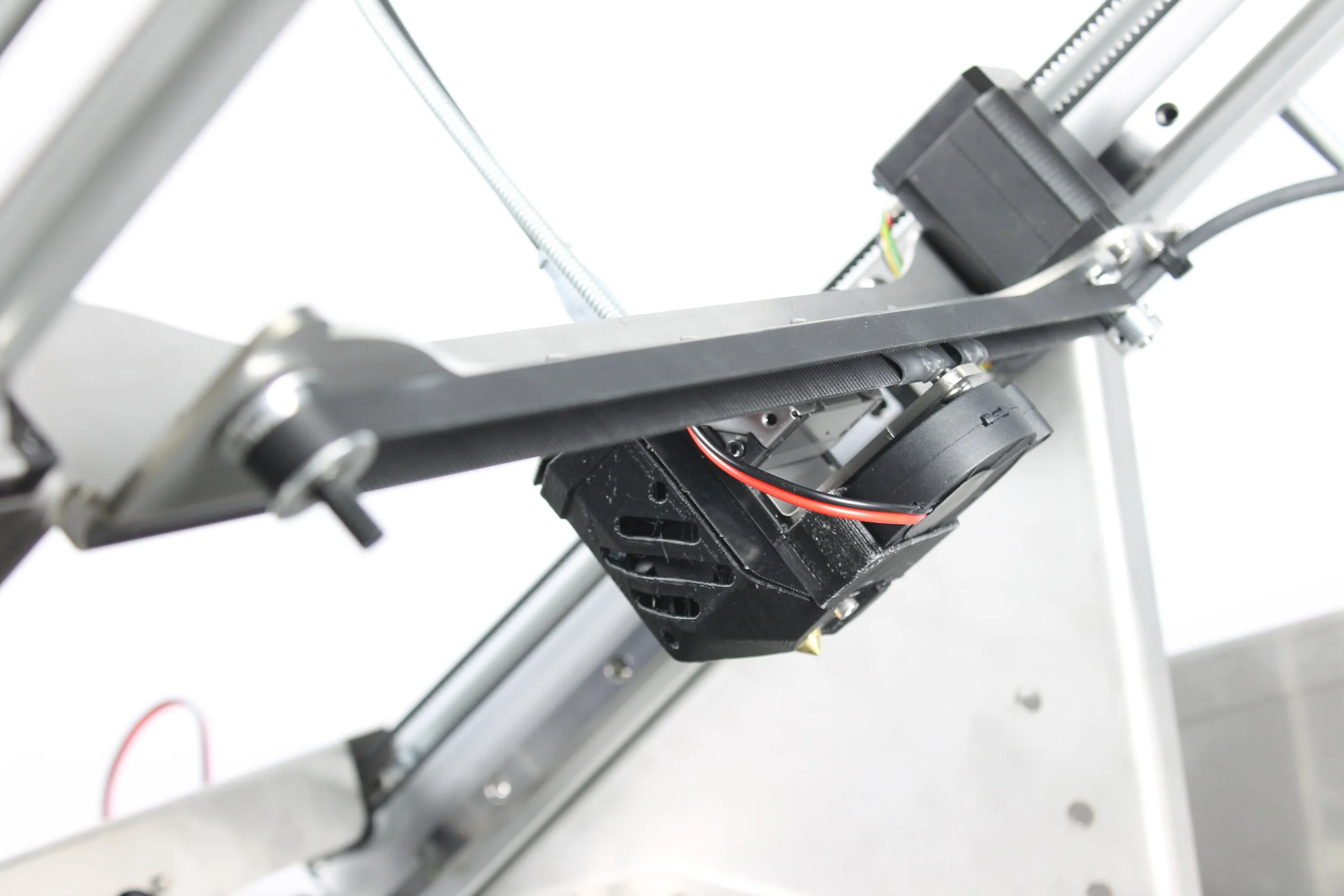

Configure your BLACKBELT 3D Printer to suit your business’s needs. Your printer can be configured in one of two configurations: Bowden and Variodrive.

The Bowden setup is optimised for the printing of traditional rigid materials such as PLA, PETG and ABS.

For this configuration brass nozzles come standard with optional hardened steel nozzles availble for the printing of fiber filled materials or abrasive composite materials that contain steel, bronze, ceramics etc.

By selecting this configuration, your BLACKBELT 3D Printer will come equiped with a Bowden filament feeding system and include 3 print heads of your choice. ( 0.25mm, 0.4mm, 0.6mm, 0.8mm, 1.0 mm)

The VarioDrive setup is a direct drive setup optimised for the printing of flexible materials such as TPU, TPE as well as for abrasive composite materials.

For this configuration a single, high performance tungsten carbide comes standard for the printing of flexible materials. The hardened nozzle also makes the VarioDrive equpped BLACKBELT perfect for printing fiber filled materials and abrasive composite materials that contain steel, bronze, ceramics etc.

By selecting this configuration, your BLACKBELT 3D Printer will come equiped with a direct drive filament feeding system and includes 1 print head of your choice. (0.4mm, 0.6mm, 0.9mm, 1.2mm)





What’s In The Box

Massive performance. Desktop Footprint.



Desktop Edition

  • 1 x BLACKBELT 3D Printer

  • 2 x XL 2.2kg Spools of nGen

  • 1 x Stainless Steel Spool Holder

  • 3 x Print heads included: 0.4mm + 0.6mm + 0.8mm

  • Guarantee 2 years, excluding wear parts (print head & belt)

Blackbelt 3D Printer Shipping Box

Blackbelt 3D Printer What's In The Box

Desktop Edition - Variodrive Extruder

  • 1 x BLACKBELT 3D Printer with Variodrive Direct Drive System

  • 2 x XL 2.2kg Spools of nGen

  • 1 x Stainless Steel Spool Holder

  • 1 x Print head included: ( 0.4mm, 0.6mm, 0.9mm or 1.2mm available)

  • Guarantee 2 years, excluding wear parts (print head & belt)






Tech Specs

Industry leading performance.


  •
    Build Area Single Colour : 340mm x 340mm x ∞ mm   Product Dimensions 1050 L X 660 W X 590 H mm
            [41.34 L X 25.98 W X 23.23 H IN]

    Print Technology Fused Filament Fabrication (FFF)   Shipping Box 1200 L X  800 W X 500 H mm
            [47.24 L X 31.50 W X 19.69 H IN]

    Build Volume 340 L X 340 W X ∞ H mm   Product Weight 45 KG [99.21 LBS]
      [13.39 L X 13.39 W X ∞ H IN]

     Feeding System  Bowden   Shipping Weight  88 KG [194.01 LBS]

    Layer Resolution 100 - 300 microns [0.0039 - 0.0118 Inches]   Construction Powder-coated steel, aluminium casting and extrusions for motion components

    Material Diameter 1.75 mm [0.069 in]   Build Surface Proprietary Carbon Fibre Belt

    Material Compatibility PLA, ABS, PETG, HIPS   Build Plate Levelling  Factory levelled with aluminium T-slot fasteners
      Additional materials such as nylon, Metalfill, Carbonfill, and Woodfill with modifications

    Nozzle Diameter
    0.4 mm [0.015 IN], 0.6 mm[0.024 IN], 0.8mm [0.031] IN] Supplied
      Operating Temperature 0°C - 280°C Nozzle [32°F - 536°F]

    Additional sizes 0.25mm [0.009 IN] and 1.0mm [0.0393 IN] available upon request
        0°C - 100°C Bed [32°F - 212°F]

    Print File Type .STL   Voltage Input  Variable 120V or 220V AC

    Software Blackbelt Cura   Power Supply 24V 600W
  •
    Build Area Single Colour : 340mm x 340mm x ∞ mm   Product Dimensions 1050 L X 660 W X 590 H mm
            [41.34 L X 25.98 W X 23.23 H IN]

    Print Technology Fused Filament Fabrication (FFF)   Shipping Box 1200 L X  800 W X 500 H mm
            [47.24 L X 31.50 W X 19.69 H IN]

    Build Volume 340 L X 340 W X ∞ H mm   Product Weight 45 KG [99.21 LBS]
      [13.39 L X 13.39 W X ∞ H IN]

     Feeding System  Direct Drive   Shipping Weight  88 KG [194.01 LBS]

    Layer Resolution 100 - 300 microns [0.0039 - 0.0118 Inches]   Construction Powder-coated steel, aluminium casting and extrusions for motion components

    Material Diameter 1.75 mm [0.069 in]   Build Surface Proprietary Carbon Fibre Belt

    Material Compatibility PLA, ABS, PETG, HIPS   Build Plate Levelling  Factory levelled with aluminium T-slot fasteners
      Additional materials such as nylon, Metalfill, Carbonfill, and Woodfill with modifications

    Nozzle Diameter
    A single extruder of 0.4 mm [0.015 IN], 0.6 mm[0.024 IN], 0.9mm [0.035] IN] or 1.2mm [0.047 IN]
      Operating Temperature 0°C - 280°C Nozzle [32°F - 536°F]
            0°C - 100°C Bed [32°F - 212°F]

    Print File Type .STL   Voltage Input  Variable 120V or 220V AC

    Software Blackbelt Cura   Power Supply 24V 600W




Shipping & Sales

Support dedicated to your success.


  • All our Blackbelt 3D Printers come with a 24 month, Australian based parts warranty on all non-consumable parts and a 24 month support warranty. See terms and conditions for more details.

  • We ship all to all around Australia. If you are not located in Australia or New Zealand, contact us  for a shipping quote as we still ship to your country.

  • Complimentary shipping is included for all Blackbelt 3D Printers sold in Australia.

  • For international customers, duties and taxes are assessed by your local customs authority upon importation and are the responsibility of the customer. These taxes and duties are not included with your purchase.

  • For orders placed within Australia, GST is included in the sale price.

  • Require a quote, purchase order or pay via direct deposit? Contact us with the details of your order and we’ll generate an invoice or quote for you.

  • Looking to kit out a space with multiple 3D printers? We offer discounts on orders of five or more.  Contact us to arrange to a bulk discount.





Contact Us

Streamline your workflow. Deliver the quality results you need.




Have questions for us?

Request a call from us to see how your business can add industrial production power to your desktop and accelerate your workflow. Our team will get back to you with a tailor-made offer within 2 business days.




Seeing is believing

Not sure if the BLACKBELT can meet your business’s needs? We are. Request a test print from a BLACKBELT 3D printer to see how it could empower your business today.
