Ziflex Build Surface
Ziflex Build Surface
The Ultimate Print Surface

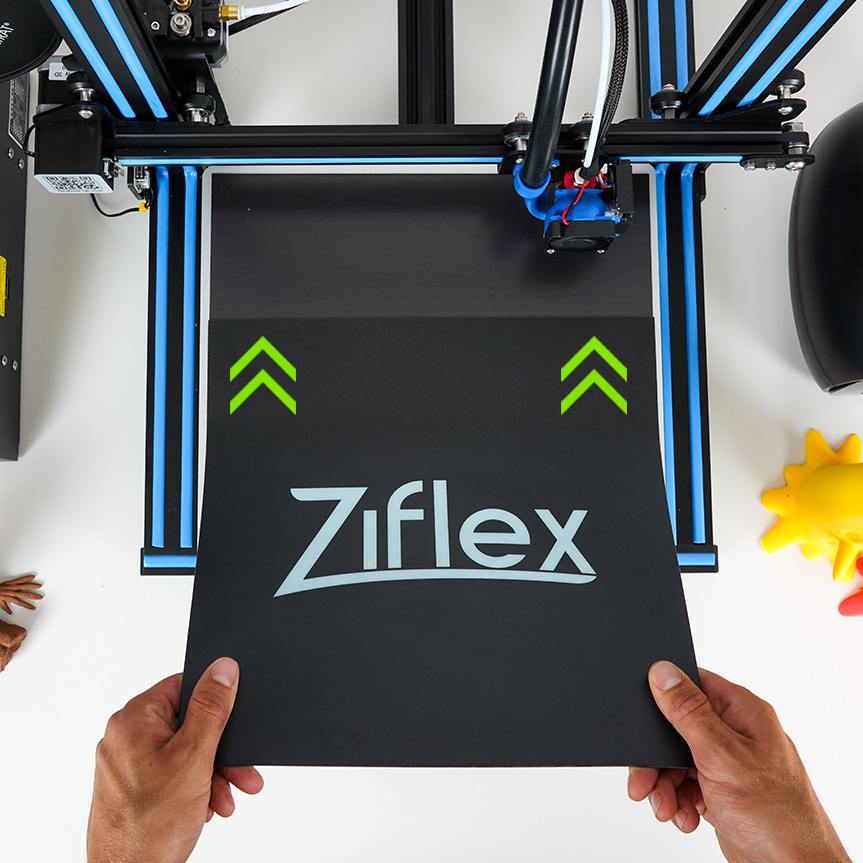

Ziflex is a thin, flexible and heat resistant build surface. Featuring a coating that can handle any material, Ziflex ensures that your prints stick when they need to and pop off when they don’t.
Includes:
Upper + Lower
Upper Magnetic Build Surface
Lower Magnetic Adhesive Surface
Upper Only
Upper Magnetic Build Surface
Don’t Just take our word for it. The Ziflex is supported by….
Features
Extended Calibration Lifespan
Fewer forces exerted on your print bed when removing prints means your printer stays calibrated for longer - Less time spent bed levelling and more time printing.
Perfect Adhesion
The incredible flexibility of the print surface will allow your printer to keep parts stuck on the bed when you need them to and for you to easily remove any print, without damaging your new build surface.
Increased Productivity

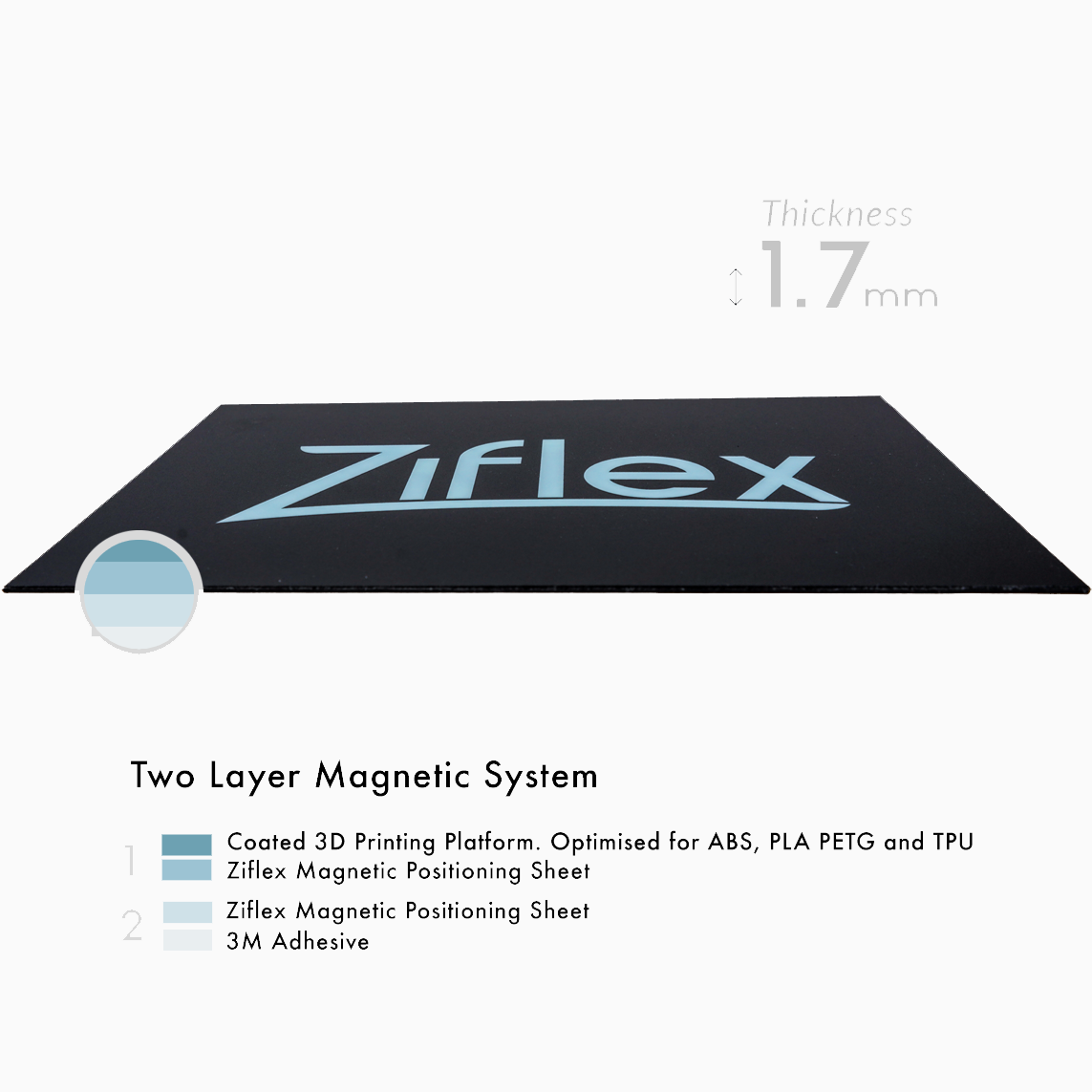

Prints slide off in seconds when the bed when removed thanks to Ziflex’s innovative, two layer magnetic system. Say goodbye to spatulas, scrapers and all the other implements you used to remove prints in the past. No more cuts, scrapes and injuries when removing prints.

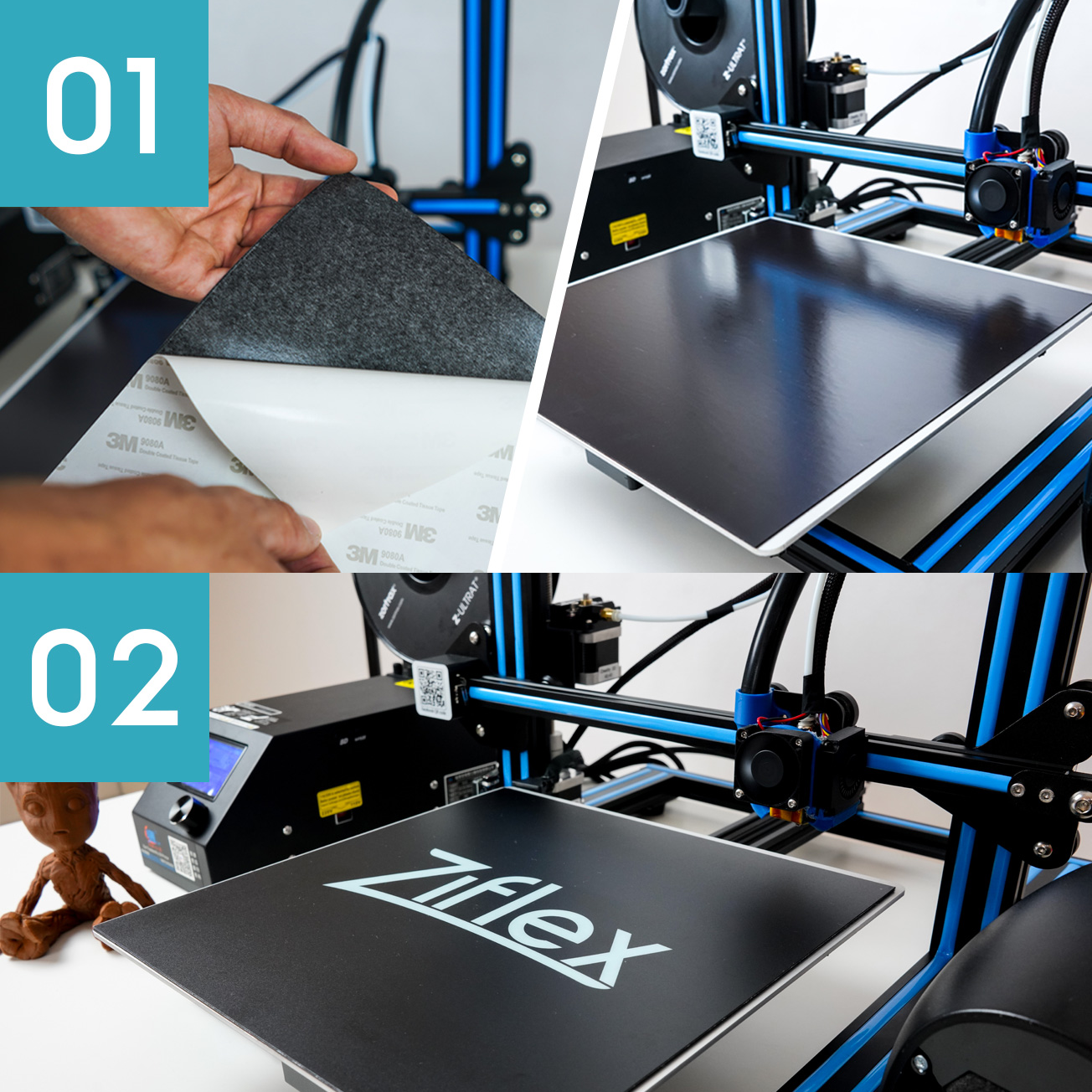

Simple Setup
With 3M adhesive technology, setup is quick and simple. Simply peel the backing off the 3M adhesive and stick the magnetic plate to your build plate.

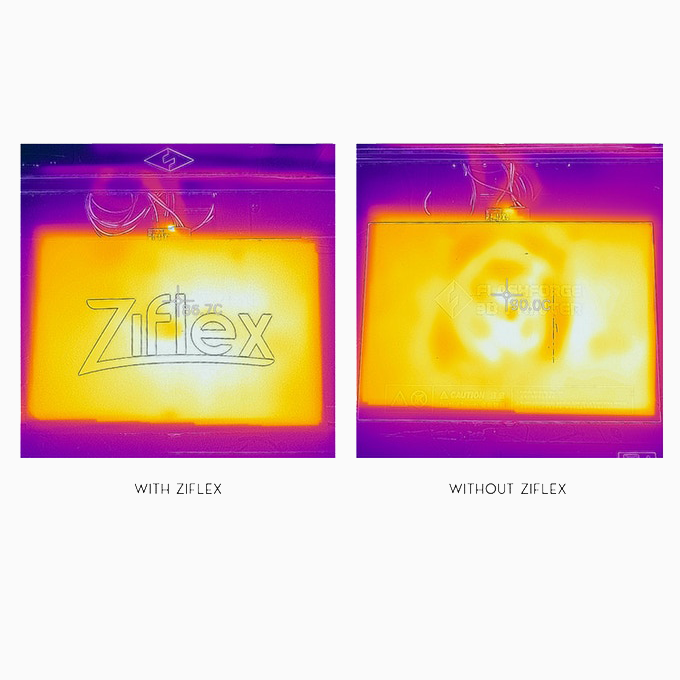

Uniform Heat Distribution
The Ziflex can heat up to 90°C in a matter of seconds. All the while the strong magnet and adhesive combo keeps the Ziflex stuck on the bed, ensuring effective and even heat transmission.
Magnetic Positioning Technology
The Ziflex uses strong, directional magnets that guide the print surface in a single direction. This ensures that your Ziflex stays in perfect alignment to your printer’s bed all the while, maintaining a strong grip.
Tech Specs
| Application | Flexible, Magnetic Build Surfaces For Fused Filament Fabrication (FFF) Machines | Product Dimensions | Variable | |
|---|---|---|---|---|
| Maximum rated temperature | 150°C | Product Thickness | 1.75mm [0.068IN] | |
| Country of Manufacture | France | Adhesion Method | 3M Adhesive |
Custom Sizing
Can’t find a Ziflex in stock to fit your printer? No problem. Let us know what printer have and we’ll see what we can do. We can custom produce Ziflex’s to as as large as 1㎡. Drop us a line and we’ll get back to you in 24 hours.
FAQ’s
+ I use an automated calibration system, will Ziflex work with it?
Maybe. Currently there are four different automated calibration technologies available on the market:
- Capacitive
- Mechanical
- Optical
- Inductive
Ziflex will work perfectly with the first three technologies without any modifications: Capacitive, Mechanical, and Optical. If your bed levelling relies on inductive technology, a conductive receiver maybe needed.
+ What is the maximum bed temperature the Ziflex can handle?
There is no set temperature that the Ziflex is rated to as this varies from printer to printer. Zimple has torture tested their products at 90°C for 50+ hours and has reported no degradation in the Ziflex.
+ Can I use PEI sheet on top of my Ziflex?
Sure. As PEI is flexible, it will work when placed on top of Ziflex.
Shipping & Sales Info
We ship all to all around Australia. If you are not located in Australia contact us for a shipping quote as we still ship to your country.
Shipping is calculated during checkout, before you confirm your order. Depending on your location shipping time may vary and will be indicated during the checkout process. We do not offer an overnight shipping option.
For international customers, duties and taxes are assessed by your local customs authority upon importation and are the responsibility of the customer. These taxes and duties are not included with your purchase.
For orders placed within Australia, GST is included in the sale price.
Require a quote, purchase order or pay via direct deposit? contact us with the details of your order and we’ll generate an invoice or quote for you.
Looking to kit out a space with multiple 3D printers? We offer discounts on orders of five or more. contact us to arrange to a bulk discount.
