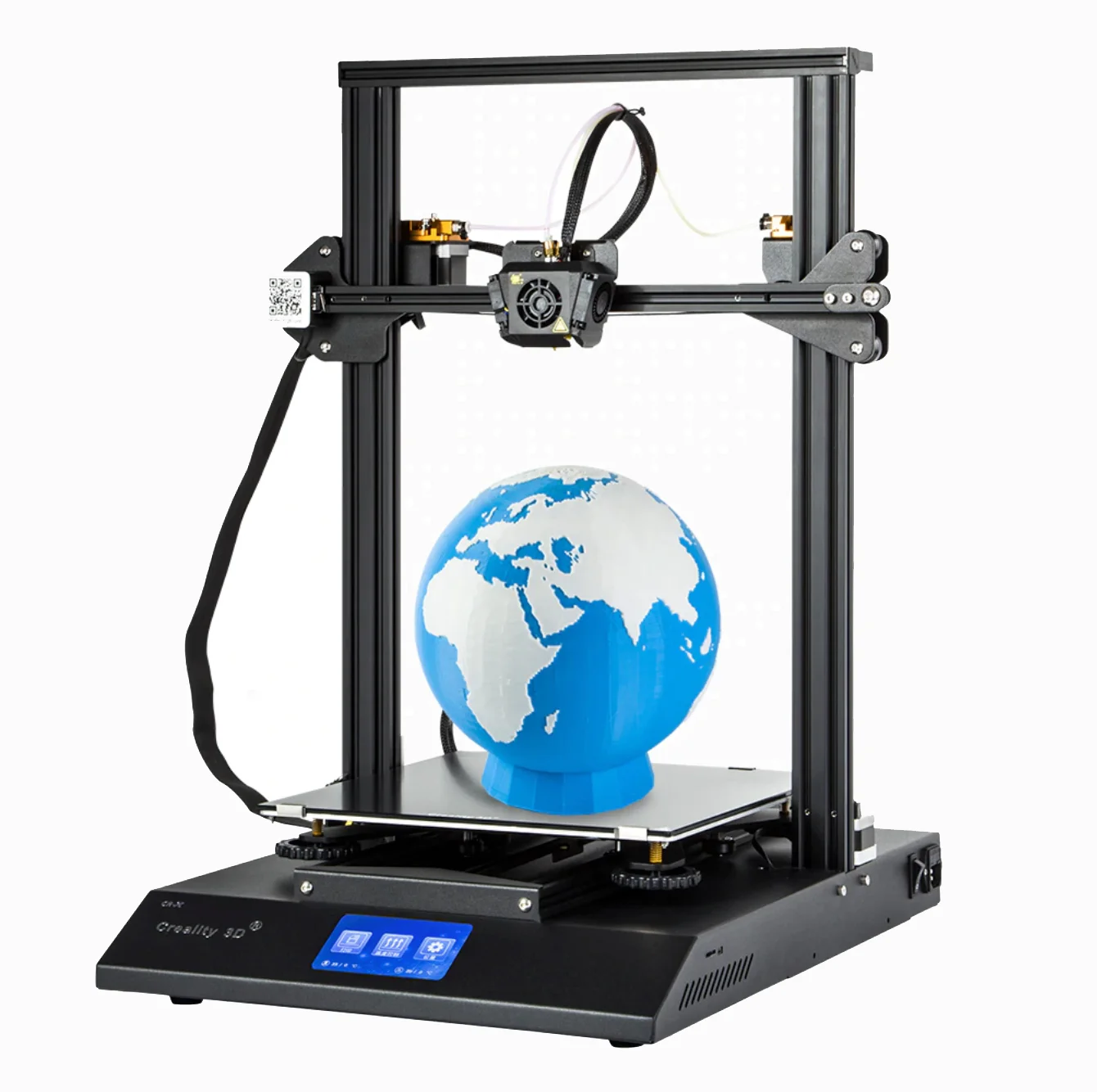

CRX

CRX

1,350.00

Printer Type:

  • Fused Filament Fabrication (FFF)

Build Area:

  • Single Colour : 300mm x 300mm x 400mm

  • Dual Colour : 270mm x 270mm x 400mm

Quantity:
Add To Cart




Features


Standard_Print_Co-CR-X-Dual-Extrustion

Dual Material Extruder

Say goodbye aligning and calibrating multiple print heads with the CRX’s all new dual material extruder. Channeling two filament feeds into a single nozzle, the CRX’s nozzle combines the benefits of multi-material extrusion with none of the drawbacks of a traditional two-nozzle system.

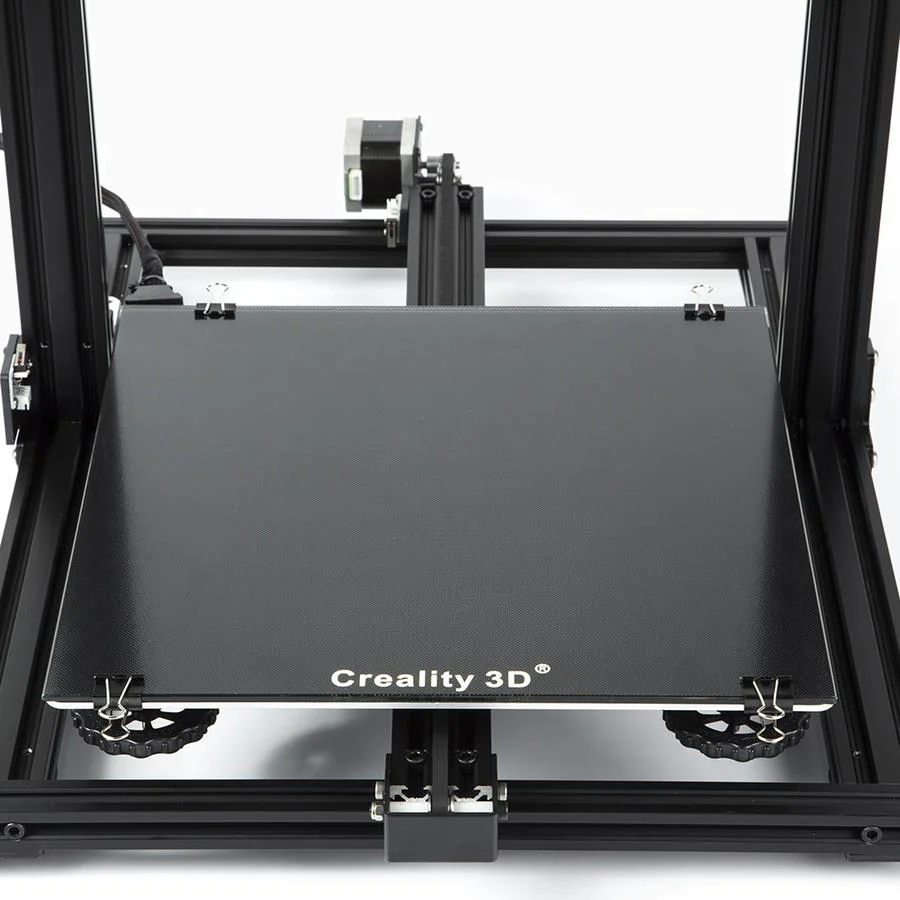

Creality-CRX-Build-Platform

Coated Print Surface

The CRX’s Carboloy Silicon Printing Platform boasts a proprietary, coated glass print surface that grips while the bed is hot and releases when cool, keeping your print stuck to the bed when you need it.

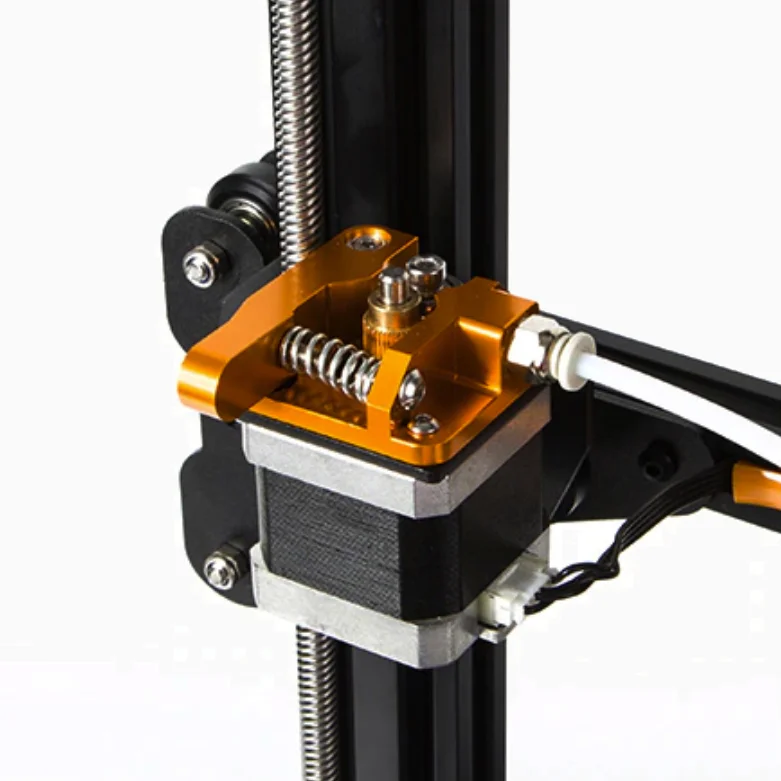

CR-X-AllMetalExtruder #fffffff.jpg

All Metal Construction

Armed with two all-metal extruders, aluminium casting extrusions and a powder-coated steel shell, the CRX provides a rigid, well supported printing platform - with the load spread and running over dual 2020 extrusions on eight pulleys.

CR-X LCD Touch Screen #ffffffff.jpg

LCD Screen

Leave selector knobs in the past and easily select available options by touching the icons on the CRX’s built-in 4.3 inch LCD touchscreen.

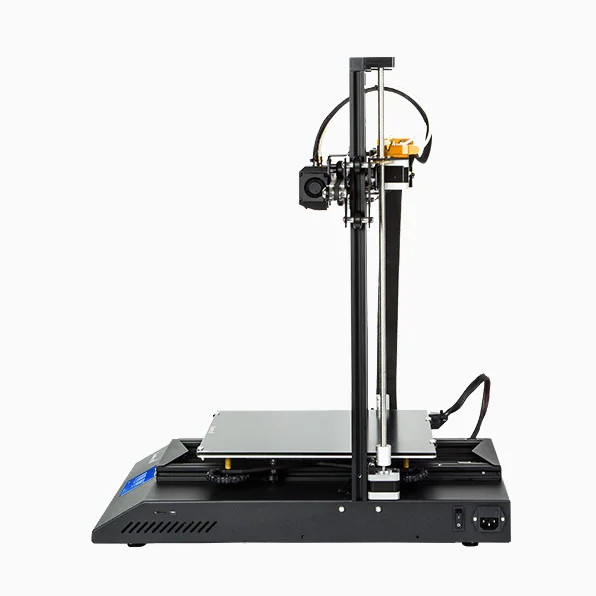

Standard-Print-Co-CRX-Unibody

Compact Design

The CRX’s new unibody construction offers the same, large, print volume as the original CR-10 S3 but with with a 25% smaller footprint. The CRX’s new single ribbon cable design keeps all your cables tidy while the machine is in operation.

CR-Large Adjustment Knob.jpg

Adjustment Nut

Keep your bed level with the CRX’s new, spring loaded, oversized adjustment nuts allowing for finer adjustments and greater precision.



Tech Specs

Build Area Single Colour : 300mm x 300mm x 400mm   Product Dimensions 550 L X 400 W X 650 H mm


Dual Colour : 270mm x 270mm x 400mm

    [21.65 L X 15.75 W X 25.59 H IN]

Print Technology Fused Filament Fabrication (FFF)   Shipping Box 660 L X 550 W X 380 H mm
        [25.98 L X 21.65 W X 14.96 H IN]

Build Volume 300 L X 300 W X 400 H mm   Product Weight 18.9 KG [41.67 LBS]
  [11.81 L X 11.81 W X 15.74 H IN]
  36,000 Cubic Centimeters   Shipping Weight 19.5 KG [42.99 LBS]
  [2196.84 Cubic Inches]

Layer Resolution 100 - 300 microns [0.0039 - 0.0118 Inches]   Construction Powder-coated steel, aluminium casting and extrusions for motion components

Material Diameter 1.75 mm [0.069 in]   Build Surface Proprietary Carboloy Silicon Plate

Material Compatibility PLA, ABS, PETG, HIPS
  Additional materials such as nylon, Metalfill, Carbonfill, and Woodfill with modifications   Build Plate Levelling Factory levelled with spring-loaded adjusters

Nozzle Diameter 0.4 mm [0.015 IN] Supplied   Operating Temperature 0°C - 250°C Nozzle [32°F - 482°F]
  Additional sizes 0.2mm - 1.2mm available with modifications     0°C - 100°C Bed [32°F - 212°F]

Print File Type .STL   Voltage Input  Variable 110V or 220V AC via an on-board selector switch

Software Cura, Simplify 3D, Slic3r   Voltage Output 24V 15A 480W

Motherboard Creality 2.1 Motherboard with Atmega 2560 CPU   Power Supply MEANWELL RSP-500-24

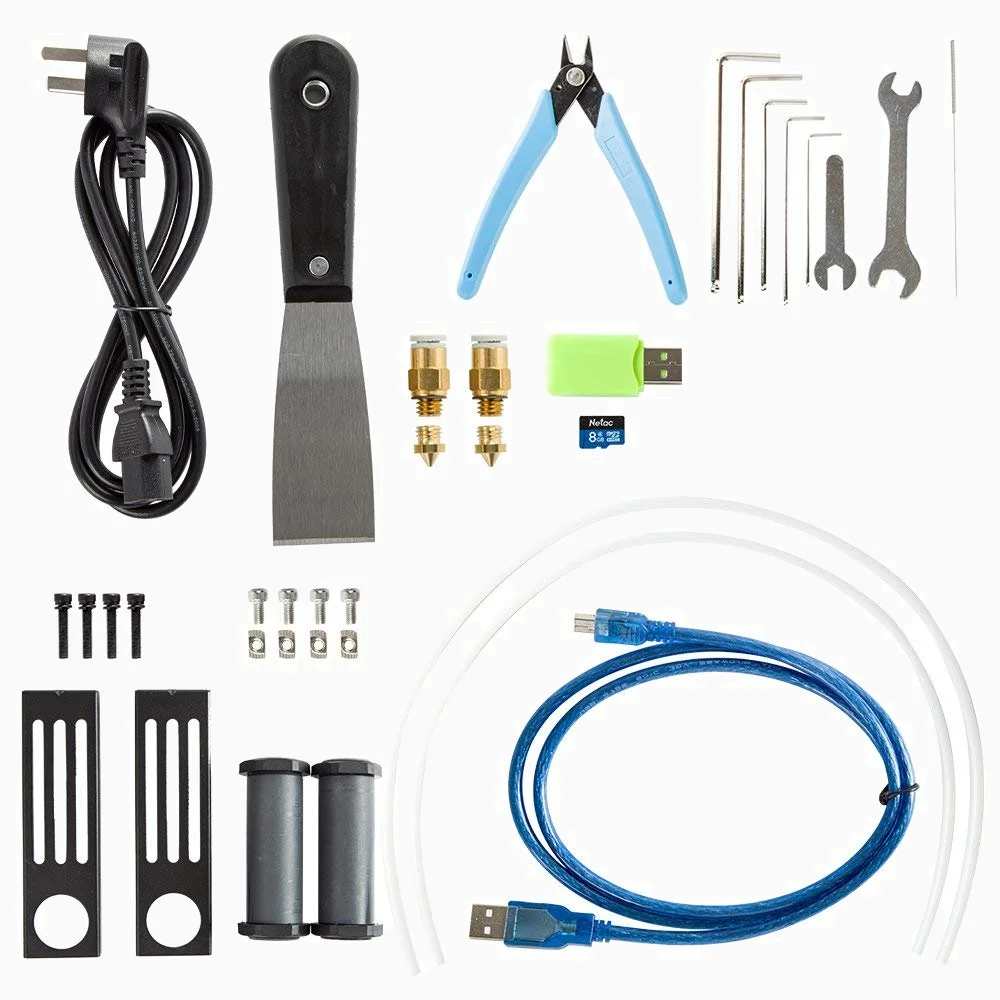

What’s In The Box?

  • 1 x CRX 3D Printer

  • 2 x Spare 0.4mm Nozzles

  • 1 x Nozzle Cleaning Needle

  • 2 x 1 Kg Rolls of Manufacturer Supplied Filament

  • 2 x Spool Holders With Mounting Attachments

  • 1 x Part Scraper

  • 1 x Pair Side Cutters

  • 1 x Alan Key Set

  • 1  x Wrench Set

  • 1 x 8GB Micro SD Card

  • 1 x Micro SD card to USB Adapter

  • 1 x USB Cable

CR-X Shipping Box.png


Shipping & Sales Info

  • All our Creality 3D Printers come with a 12 month, Australian based. parts warranty and a 24 month support warranty. See terms and conditions for more details.

  • We ship all to all around Australia. If you are not located in Australia contact us  for a shipping quote as we still ship to your country.

  • Shipping is calculated during checkout, before you confirm your order. Depending on your location shipping time may vary and will be indicated during the checkout process. We do not offer an overnight shipping option.

  • For international customers, duties and taxes are assessed by your local customs authority upon importation and are the responsibility of the customer. These taxes and duties are not included with your purchase.

  • For orders placed within Australia, GST is included in the sale price.

  • Require a quote, purchase order or pay via direct deposit? contact us with the details of your order and we’ll generate an invoice or quote for you.

  • Looking to kit out a space with multiple 3D printers? We offer discounts on orders of five or more.  contact us to arrange to a bulk discount.
