Fused Filament Fabrication (FFF)
300mm x 300mm x 400mm

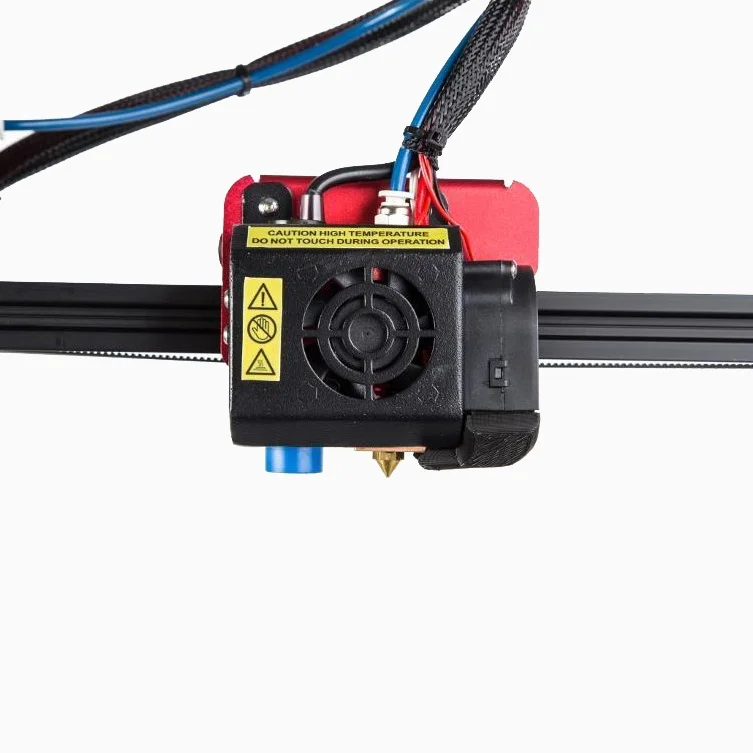

Bed Levelling Sensor
CR-10S Pro features an all new inductive proximity sensor, granting the printer the ability to automatically detect the bed and assist in reading a matrix of points across the bed for bed levelling.
Coated Print Surface
The CR-10S Pro’s Carboloy Silicon Printing Platform boasts a proprietary, coated glass print surface that grips while the bed is hot and releases when cool, keeping your print stuck to the bed when you need it.
Automatic Resume Function
Not even the loss of power stops the CR-10S Pro from completing prints with automatic resume function. Pick straight up from where you left off in the event of a power cut.
All Metal Construction
Armed with all-metal extruders, aluminium casting extrusions and a powder-coated steel shell, the CR-10S Pro provides a rigid, well supported printing platform - with the load spread and running over dual 2020 extrusions on multiple pulleys.
Leave selector knobs in the past and easily select available options by touching the icons on the CR-10S PRO’s built-in 4.3 inch LCD touchscreen.

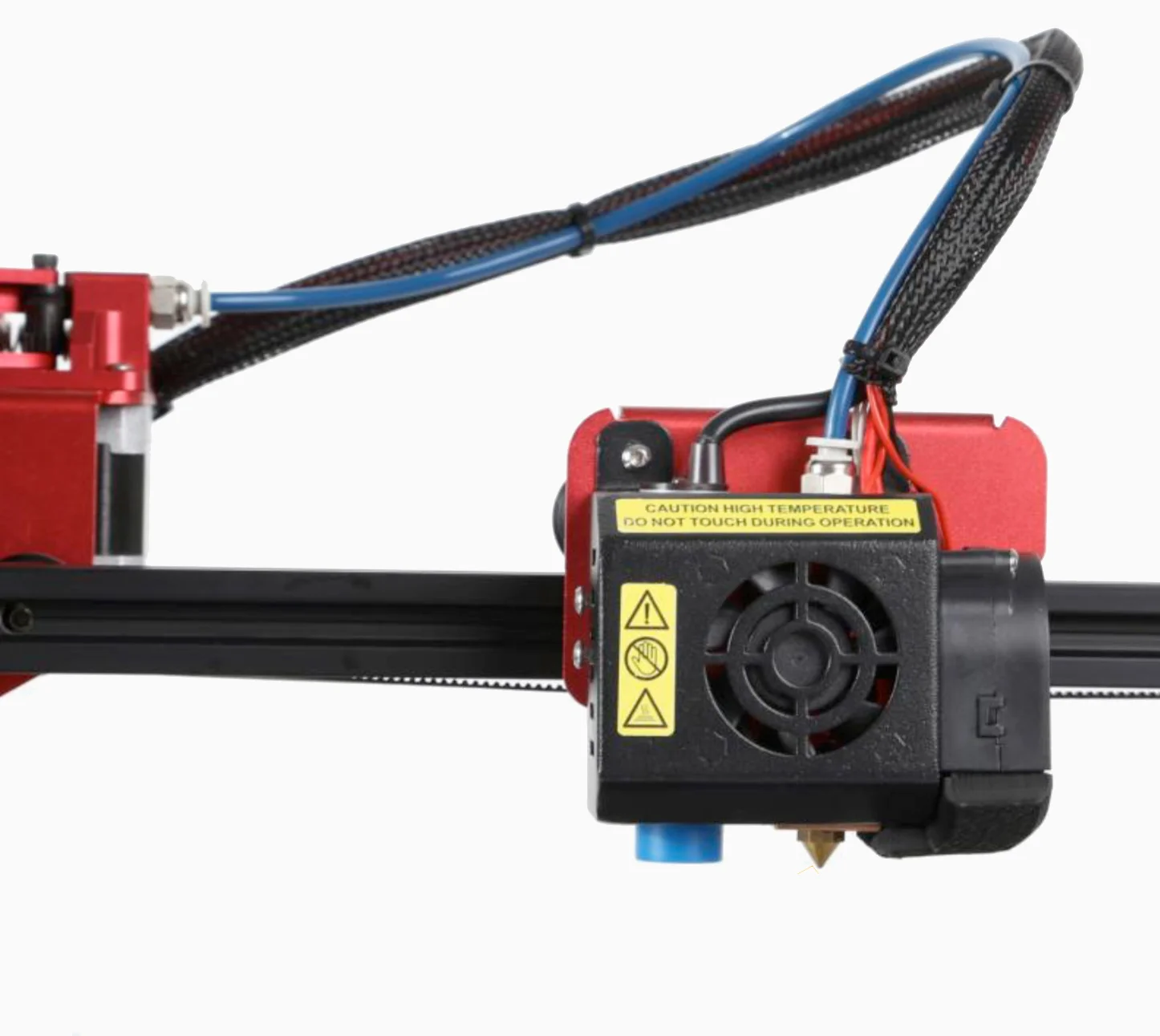

High Temperature PTFE Tubing
Rated up to 340°C the CR-10S Pro comes out of the box with Capricorn’s XS Series, High Temperature, Low Friction PTFE Tubing, unlocking the ability to print exotic filaments with high melting points.
The CR-10S Pro’s new unibody construction offers the same, large, print volume as the original CR-10 S3 but with with a 25% smaller footprint. The CRX’s new single ribbon cable design keeps all your cables tidy while the machine is in operation.
Dual Gear Extrusion
Dual, Bondtech style filament feed gears paired with the CR-10S Pro’s low friction PTFE tube means more reliable and stronger feed of filament with less slippage.
Take full advantage of the CR-10S Pro’s massive build volume and tackle even the longest, filament guzzling prints with automatic filament runout detection.
|Build Area||Single Colour : 300mm x 300mm x 400mm||Product Dimensions||490 L X 550 W X 654 H mm|
|[19.29 L X 21.65 W X 25.75 H IN]|
|Print Technology||Fused Filament Fabrication (FFF)||Shipping Box||660 L X 550 W X 380 H mm|
|[25.98 L X 21.65 W X 14.96 H IN]|
|Build Volume||300 L X 300 W X 400 H mm||Product Weight||13.1 KG [28.88 LBS]|
|[11.81 L X 11.81 W X 15.74 H IN]|
|36,000 Cubic Centimeters||Shipping Weight||17.5 KG [38.58 LBS]|
|[2196.84 Cubic Inches]|
|Layer Resolution||100 - 300 microns [0.0039 - 0.0118 Inches]||Construction||Powder-coated steel, aluminium casting and extrusions for motion components|
|Material Diameter||1.75 mm [0.069 in]||Build Surface||Proprietary Carboloy Silicon Plate|
|Material Compatibility||PLA, ABS, PETG, HIPS|
|Additional materials such as nylon, Metalfill, Carbonfill, and Woodfill with modifications||Build Plate Levelling||Factory levelled with spring-loaded adjusters|
|Nozzle Diameter||0.4 mm [0.015 IN] Supplied||Operating Temperature||0°C - 250°C Nozzle [32°F - 482°F]|
|Additional sizes 0.2mm - 1.2mm available with modifications||0°C - 100°C Bed [32°F - 212°F]|
|Print File Type||.STL||Voltage Input||Variable 110V or 220V AC via an on-board selector switch|
|Software||Cura, Simplify 3D, Slic3r||Voltage Output||24V 15A 480W|
|Motherboard||Creality 2.1 Motherboard with Atmega 2560 CPU||Power Supply||MEANWELL RSP-500-24|
What’s In The Box?
1 x CR-10S Pro 3D Printer
1 x Spare 0.4mm Nozzle
1 x Nozzle Cleaning Needle
2 x 1 Kg Rolls of Manufacturer Supplied Filament
1 x Spool Holders With Mounting Attachments
1 x Part Scraper
1 x Pair Side Cutters
1 x Alan Key Set
1 x Wrench Set
1 x 8GB Micro SD Card
1 x Micro SD card to USB Adapter
1 x USB Cable
